How to design a rate limiter

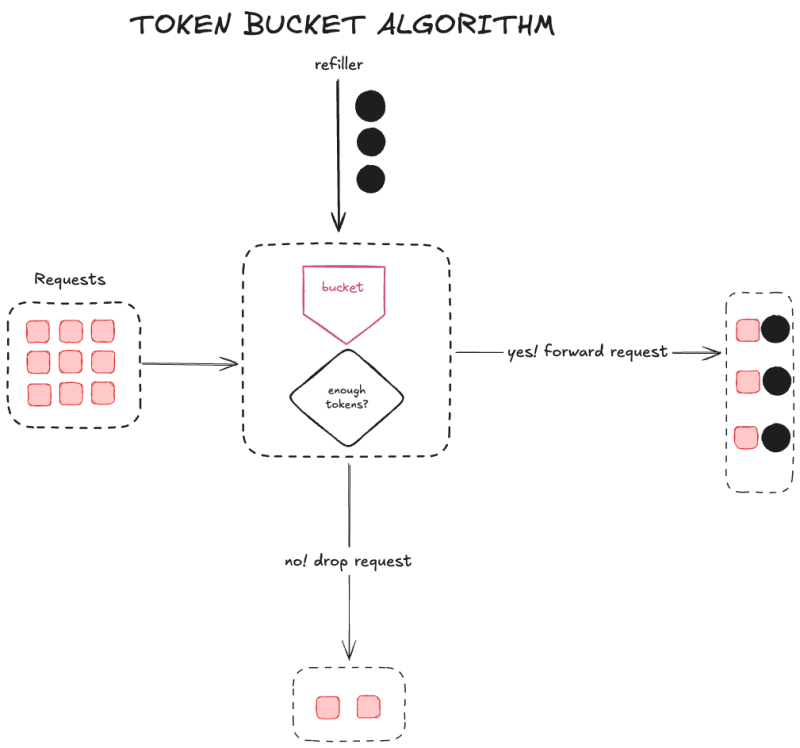

Token Bucket algo takes two parameters

1. Bucket size: max number of tokens allowed in the bucket.
2. Refill rate: number of tokens put into the second per second

How many buckets do we need? It depends!

• Different buckets for different API endpoints

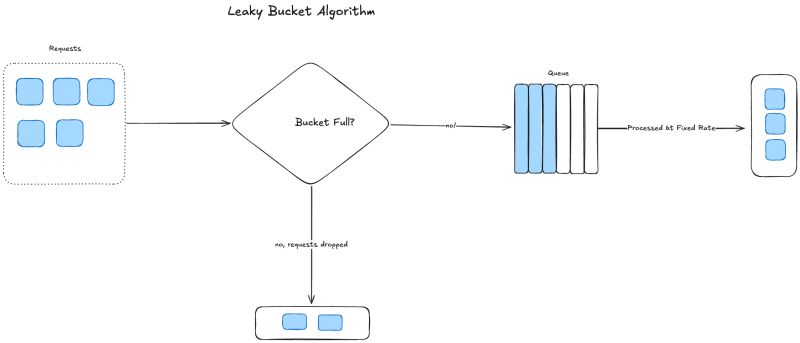

Leaky Bucket Algorithm

Leaky bucket takes 2 parameters

1. bucket size: it is equal to the queue size. The queue holds the requests to be processed at a fixed rate
2. outflow rate: it defines how many requests can be processed at a fixed rate, usually in seconds

Shopify uses this algorithm

• Memory efficient given the limited queue size
• If you have a stable outflow rate, the fixed rate works well

But

• burst of traffic fills up the queue with old requests, and if they are not processed in time, recent requests will be rate limited
• just 2 parameters makes tuning and calibrating more difficult.
